HTTP API

Public and unauthenticated. It serves exactly what the pages render, so the two cannot drift apart.

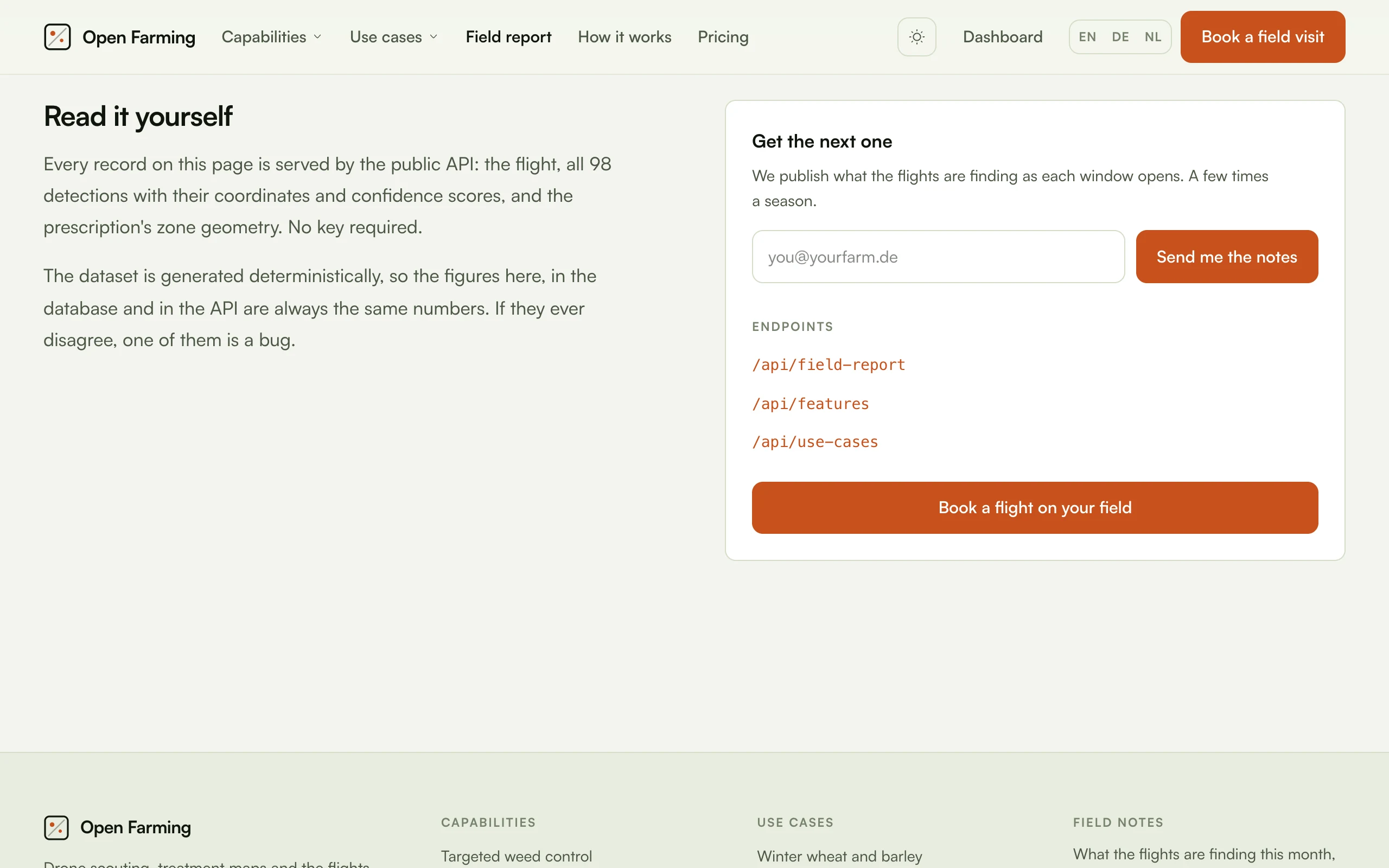

The site advertises this itself, at the foot of /field-report: every record on that page is served by these endpoints, no key required, and because the dataset is generated deterministically the page, the database and the API are always the same numbers.

Base URL: https://openfarm.ing/api in production, http://localhost:3100/api in development.

Endpoints

Herding

Authenticated and scoped to the caller's own holding, unlike everything above.

Three phases rather than one endpoint, because the thing being automated moves live animals. plan is free and reversible, which is what makes it safe for the nightly job to call unattended; authorise is the only way a move becomes flyable, and an authorisation that nothing acts on inside its window lapses to expired rather than flying late.

abort is the most generously rate limited endpoint on this site, at 240 a minute. A farmer pressing it repeatedly is a farmer watching something go wrong, and it is the one request that must never be refused.

See automated herding for what the envelope means, and the playground for the controller running.

GET /api/features

curl https://openfarm.ing/api/features

{
  "categories": [
    { "key": "detect", "label": "Detect", "blurb": "Sensing flights that find the problem while it is still small." },
    { "key": "act", "label": "Act", "blurb": "Treatment that follows the map, so only the affected ground is touched." },
    { "key": "operate", "label": "Operate", "blurb": "The service, the fleet and the reporting that keep it running." }
  ],
  "count": 19,
  "data": [
    {
      "slug": "targeted-weed-control",
      "name": "Targeted weed control",
      "category": "act",
      "tagline": "Spray the weeds, not the field",
      "summary": "Cameras and on-board models find weeds plant by plant, then only the affected square metres get treated.",
      "problem": "Blanket spraying treats the whole field because nobody knows which parts actually carry weeds. ...",
      "steps": [{ "title": "Scan", "text": "The drone flies a fixed grid at low altitude ..." }],
      "sensors": ["RGB camera at 1 cm/px", "Downward LiDAR for canopy height", "RTK positioning"],
      "outputs": ["Weed density map", "ISOXML / shapefile prescription", "..."],
      "cadence": "Two to four scouting flights per crop, timed to the herbicide windows.",
      "readings": ["Treated area as a share of field area", "..."],
      "useCases": ["winter-wheat", "maize", "sugar-beet", "organic-farms", "contractors"],
      "order": 1
    }
  ]
}

?category= accepts detect, act or operate. An unknown value returns an empty data array with count: 0, not an error.

GET /api/features/{slug}

Adds a resolved useCases array so a consumer does not have to make sixteen follow-up calls to render a page.

curl https://openfarm.ing/api/features/plant-disease-detection

{
  "data": {
    "slug": "plant-disease-detection",
    "name": "Early disease detection",
    "useCases": [
      { "slug": "winter-wheat", "name": "Winter wheat and barley", "tagline": "...", "summary": "..." }
    ]
  }
}

An unknown slug returns { "success": false, "message": "No capability with the slug \"...\"" }. The slug is stripped to [a-z0-9-] before lookup.

GET /api/use-cases and /api/use-cases/{slug}

The same shape, keyed by segment instead of category. ?segment= accepts arable, permanent, protected, livestock or operator.

The detail endpoint resolves features in the order the use case lists them, most load bearing first. A slug with no matching feature is dropped rather than emitted as a null.

GET /api/field-report

The whole flight record behind every map on the site.

curl https://openfarm.ing/api/field-report

{
  "data": {
    "sample": true,
    "farm": "Hofgut Lindenbach",
    "region": "Niederbayern",
    "field": "Lindenbach Nord",
    "crop": "winter wheat",
    "hectares": 24.6,
    "flownAt": "2026-04-18 06:40:00",
    "resolutionCm": 1,
    "durationMinutes": 31,
    "detections": [
      { "kind": "weed", "label": "Chickweed", "x": 0.3099, "y": 0.9686,
        "area_m2": 110, "severity": "low", "confidence": 0.628 }
    ],
    "zones": [{ "x": 0.6875, "y": 0, "w": 0.0625, "h": 0.0455, "rate": 110 }],
    "boundary": [[0.04, 0.02], [0.97, 0.05]],
    "imagery": {
      "url": "/imagery/lindenbach-2026-04-18.webp",
      "bounds": [-0.04, -0.03, 1.05, 1.02],
      "resolutionCm": 4
    },
    "treatedHectares": 4.34,
    "treatedPercent": 17.6,
    "speciesBreakdown": [{ "label": "Blackgrass", "count": 38 }]
  }
}

Read this before you render it

sample: true is part of the payload rather than a note in these docs, so a consumer cannot present these figures as a customer's results by accident. It is modelled data. If you display it, say so.

Coordinate space

x, y, boundary and zones are all in normalised field space: 0..1 on each axis, with the origin at the top left. There is no projection. A renderer places a detection at (x * width, y * height) inside the field's own bounding box and needs no geospatial library at all.

imagery.bounds is [minX, minY, maxX, maxY] in that same space. The numbers are normally slightly outside 0..1, because a stitch always covers more ground than the boundary: the aircraft overflies the edges. Draw the image to exactly that footprint. Letterboxing it would shift every pixel away from the detection drawn on top of it.

imagery is null, not an empty object, when the flight has no stitch. A renderer has to be able to tell "no imagery" from "imagery covering nothing".

An instance with no seeded flight record answers { "success": false, "message": "No flight record has been seeded on this instance." }.

POST /api/demo-requests

The only write this application accepts from the public internet, so everything about it is deliberately narrow.

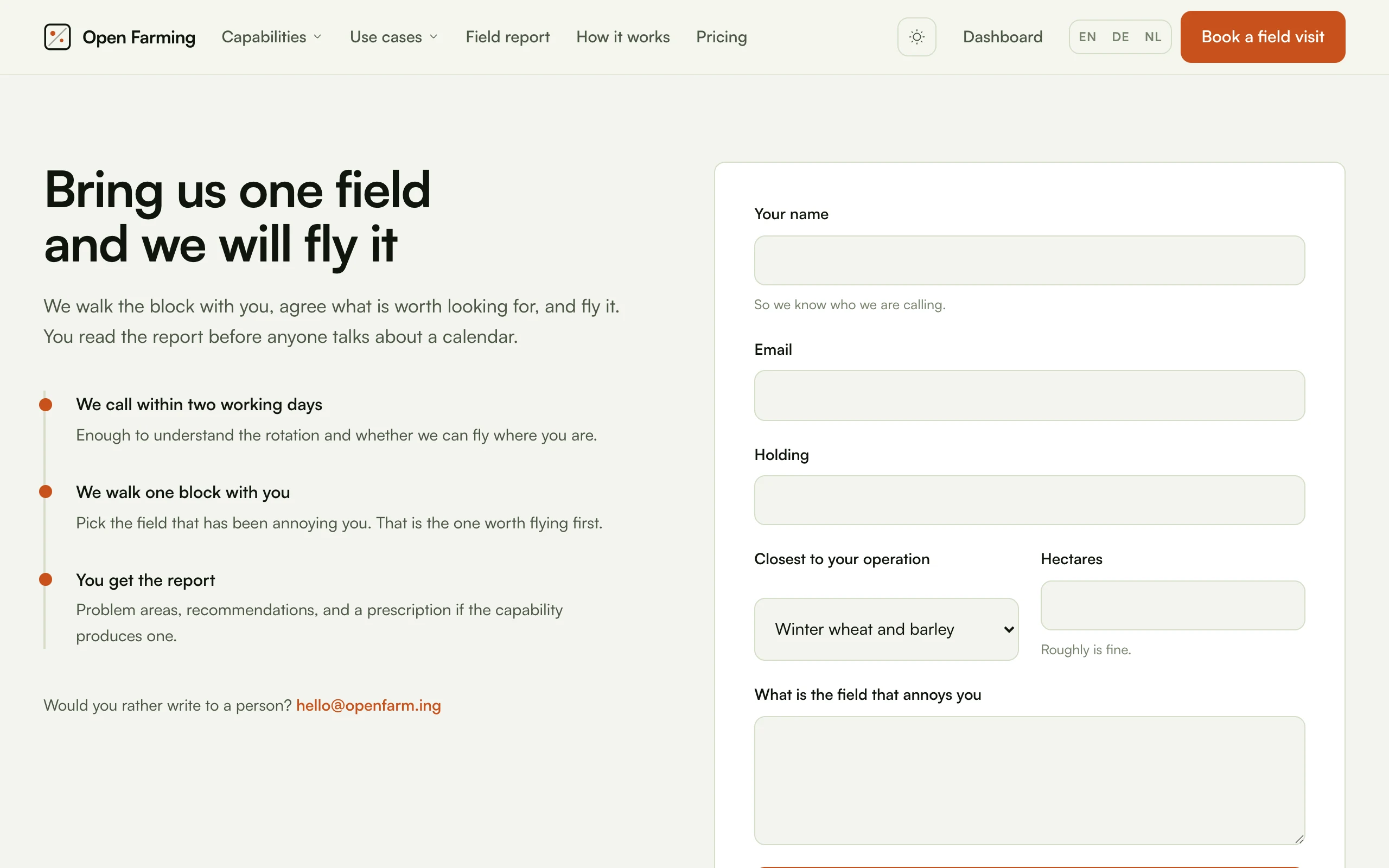

The form on /contact posts to this endpoint. Its fields are the table below, one for one.

curl -X POST https://openfarm.ing/api/demo-requests \
  -H 'Content-Type: application/json' \
  -d '{"name":"A Farmer","email":"a@example.com","hectares":268}'

Rate limited to 5 per minute per IP. The response says whether it worked and nothing else: no record id, no echo of the stored row, nothing an enumeration attempt could learn from.

A browser form post is answered with a 303 redirect to /booked instead, and a validation failure redirects to /contact#book. A fetch caller gets the JSON contract unchanged. The forms are plain server-rendered HTML and work with no client bundle at all, which is the point on a phone in a farmyard.

POST /api/email/subscribe

The framework's subscribe handler, published into userland at app/Actions/SubscriberEmailAction.ts. Rate limited and deduplicated. Redirects a browser to /subscribed.

Why there is no CSRF token

route.post(...).skipCsrf() is on every form post on this site, which is worth explaining rather than hiding.

CSRF protects a signed-in user from having their own authority used against them. POST /api/demo-requests carries no authority: it appends a lead and returns nothing an attacker could not post directly. The rate limit is what actually guards it.

For the console's own forms the reasoning is different: the session cookie is SameSite=Lax, so a cross-site form post carries no session at all. Sign-in and sign-up carry no authority to borrow either, since a forged cross-site post can only sign somebody in as themselves, and both are rate limited per IP and per email.

The OAuth callbacks are GET because that is what an OAuth redirect is. Their CSRF defence is the state cookie the redirect sets and the callback checks, not a form token, because the provider posts the farmer back from another origin where a token from this site could not travel.

Generated REST endpoints

The models carry useApi traits, so the operational domain also has generated CRUD endpoints. Those are not public: they sit behind Auth and then FarmScope, which pins every read to the caller's own holdings and rejects a write naming a farm they do not own. See Architecture.
